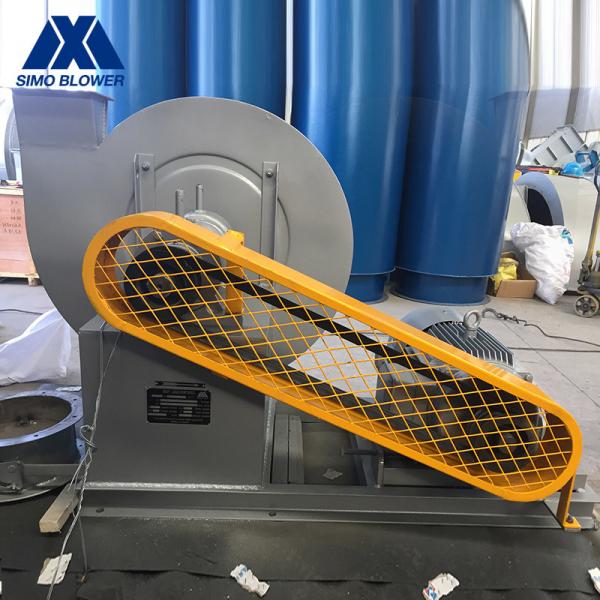

Aluminium Alloyed V-Belt Driving Energy Efficiency Biomass Boiler
Flue Gas Fan
Introduction
The 9-10 series centrifugal fan can output high gas pressure,
suitable for conveying normal or high temperature clean
gas/combustible gas/corrosive gas/mixed with a few impurities,
light particles/debris/short fiber materials.
The most commonly used for forced ventilation, rapid drying, rapid
cooling and heat dissipation, cement production line chiller
cooling, clinker cooler, circulating fluidized bed system, air
purification and industrial waste gas treatment, flue gas
desulfurization industrial boilers or incinerators forced draft/
induced draft/ primary/ secondary air, ventilation of large mill
system, industrial waste heat recovery device, blasting of smelting
furnace and casting furnace, combustion of blast furnace, coal
injection of blast furnace, pressurized transportation of gas,
Pressurization or decompression sealing of industrial equipment.
Product Features
1. It can output very high pressure and can work at higher medium
temperature, suitable for any industrial occasion where high
pressure & high temperature gas needs to be delivered.
2. In the case of using the common base , the installation is very
simple and basically does not require the support of professional
technicians.
3. The bearing box is reserved with the temperature and vibration
sensor installation position, which can conveniently install the
fan operation monitoring device.
4. When the airflow resistance is increased, the motor load will be
automatically reduced and the motor will not be burnt.
5. Customized design according to customer performance
requirements, and optimized by CFD technology, the energy
consumption is lower than similar models.
Technical data
| series | model | Rotation Speed
(r/min) | Total Pressure
(Pa) | Air Capacity
(m³/h) | Power
(kW) |
|---|
| 9-10 | 8C | 1450～2900 | 3231～15034 | 3297～14287 | 7.5～110 |
| 9C | 1450 | 4101～4597 | 4695～10717 | 15～22 |
| 10C | 1450 | 4958～5840 | 6440～15455 | 30～37 |
| 11.2C | 960～1450 | 2705～7364 | 5990～21713 | 15～75 |
| 12.5C | 960～1450 | 3975～9229 | 8327～30186 | 22～110 |
| 14C | 960～1450 | 4249～11668 | 11699～42409 | 37～220 |
| 16C | 960～1450 | 5575～15425 | 17463～63305 | 75～315 |
FAQ
1.Q: What’s the MOQ of your company ?
A: The MOQ is 1set.
2.Q: How long is the delivery time ?
A:5-35 days.
3.Q : What’s your payment terms ?
A : T/T, L/C, or Negotiable.
4.Q: What’s your warranty ?
A: 1 year.
5.Q: Is your company factory or trade company ?
A: We have our own factory, our type is factory +trade.
