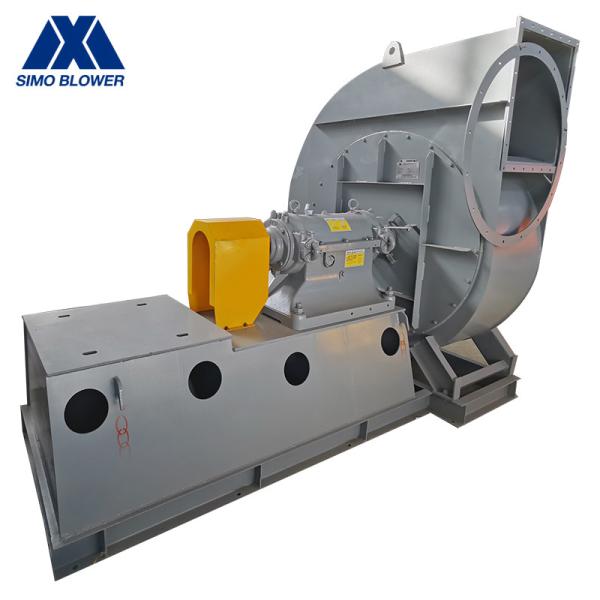

Q345 High Pressure Material Handling Blower Energy Efficiency
Introduction
The 9-11 series fan has a large flow rate and moderate pressure.
This fan is designed for the purpose of using industrial boiler to
work in the high-efficiency area and achieve the energy-saving
target.
It has been compared with similar foreign products and tested by
model test.
Detail introduction
1. The fan can output very high pressure, suitable for any need to
transport high pressure & normal temperature gas industrial
occasions.
2. Made of high quality carbon steel, Stainless steel or other
metal materials can also be used according to user requirements.
3. It can be used to transport normal temperature or high
temperature clean gas, dusty gas, flammable gas, corrosive gas,
powder or granular materials, fiber materials, etc.
Technical data
| series | model | Rotation Speed
(r/min) | Total Pressure
(Pa) | Air Capacity
(m³/h) | Power
(kW) |
|---|
| 9-11 | 4D | 2900 | 2285～2452 | 3297～6594 | 5.5～7.5 |
| 4.5D | 2900 | 2893～3060 | 4695～9389 | 11～15 |
| 5D | 2900 | 3570～3854 | 6440～12880 | 15～22 |
| 5.6D | 2900 | 4482～4805 | 9048～18095 | 30～45 |
| 6.3D | 1450 | 1422～1500 | 6441～12882 | 7.5～11 |
| 7.1D | 1450 | 1804～1942 | 9220～18439 | 11～18.5 |
| 8D | 1450 | 2285～2462 | 13189～26378 | 18.5～30 |
| 9D | 1450 | 2893～3099 | 18779～37558 | 37～55 |
| 10D | 1450 | 3570～3854 | 25760～42933 | 55～90 |
| 11.2D | 960～1450 | 1961～4835 | 23961～72381 | 30～160 |
| 12.5D | 730～960 | 1412～2638 | 25329～66620 | 22～90 |
| 14D | 730～960 | 1775～3305 | 35586～93596 | 45～160 |
| 16D | 730～960 | 2314～4295 | 53120～139712 | 75～280 |
Product Features
1. The fan system running at normal temperature with an impeller
diameter of less than 1400 mm does not require additional
configuration of bearing cooling device, which reduces the user's
investment and maintenance workload.
2. It can not only reduce the pollution of the smoke on the
environment, but also reduce the wear of the smoke on the fan,
which is conducive to prolonging the life of the fan.
3. In the case of using the common base, the installation is very
simple and basically does not require the support of professional
technicians.
FAQ
1,What parameters need to be provided when you design the
industrial centrifugal fans?
A: Air flow, total pressure or static pressure, inlet temperature,
local voltage and frequency, Altitude etc.
If there is flammable and explosive gas, or big dust loading in the
medium, please also inform the designer.
2,How about your company’s pre-sales service and after-sales
service?
A: Before our cooperation, we have the professional technical team
to help you make the technical solution according to your working
condition, to make sure the centrifugal fan efficiency operation.
After sales service, we will offer 12 months’ repairing service,
and provide lifelong follow-up services. Besides, our engineers are
available for going abroad to offer the repairing service.
3,Does your company have qualifications?
A: SIMO Blower has obtained ISO 9001-2008, CE, TUV certifications
and so on.
