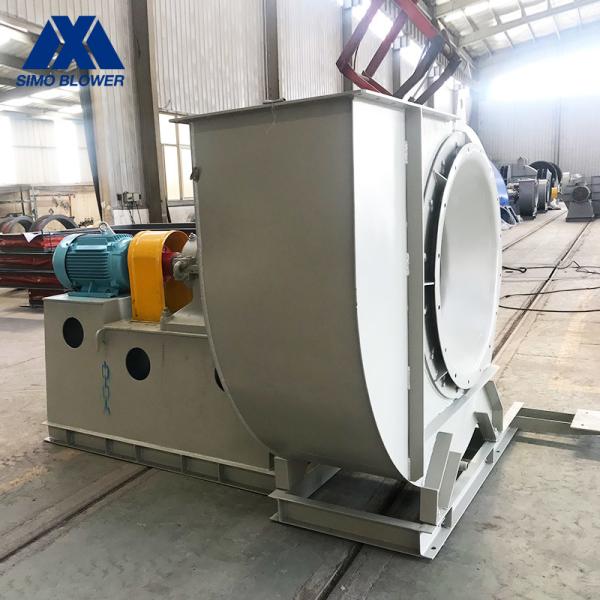

Single Inlet Coupling Driven Energy Saving Induced Draft Boiler Fan
Introduction
G4-10 and Y4-10 series ventilation and induced draft fans are
suitable for the ventilation and induced draft fan systems of
2~670T/h steam boilers in thermal power plants.
It can also be used for mine ventilation and general ventilation
without other special requirements; Mainly used to meet the needs
of large air flow applications, low noise and high efficiency.
They can transport clean gas, dusty gas, flammable gas, corrosive
gas, powder or granular materials at normal temperature or high
temperature.
Typical applications include: building ventilation, mine
ventilation, smoke evacuation, drying, clinker cooling, transport
of gas, transport of lightweight materials, blasting and drafting
of industrial boiler systems, and supply of air to kiln
systems/incinerator systems and induced air, air purification
equipment, industrial dust collector systems, etc.
In addition to the industrial system, it is also frequently used in
agriculture and civil applications and the most versatile range of
centrifugal fans.
Technical data
| series | model | Rotation Speed
(r/min) | Total Pressure
(Pa) | Air Capacity
(m³/h) | Power
(kW) |
| 4-10 | 8D | 1450 | 2104～1400 | 16156～30993 | 18.55 |
| 9D | 960 ~ 1450 | 775 ~ 2668 | 15229 ~ 44128 | 11 ~ 37 |
| 10D | 730 ~ 1450 | 553 ~ 3301 | 15886 ~ 60533 | 7.5 ~ 55 |
| 11D | 730 ~ 1450 | 669 ~ 4003 | 21144 ～ 80570 | 11 ~ 90 |
| 12D | 730 ~ 1450 | 797 ~ 4777 | 25661 ~ 104600 | 15 ~ 132 |
| 14D | 730 ~ 1450 | 1086 ~ 6541 | 43591 ～166100 | 37 ~ 315 |
| 16D | 580 ~ 960 | 895 ~ 3709 | 51699 ~ 164150 | 45 ~ 185 |
| 18D | 580 ~ 960 | 1133 ~ 4710 | 73610 ~ 233730 | 75 ~ 280 |
| 20D | 580 ~ 960 | 1400 ~ 5837 | 100970 ～ 320610 | 110 ~ 520 |
| 22D | 480 ~ 960 | 1216 ~ 6865 | 116000 ～ 434000 | 140 ~ 850 |
| 25D | 480 ~ 730 | 1579 ~ 5138 | 171000 ～ 484000 | 165 ~ 700 |
| 28D | 375 ~ 730 | 1205 ~ 6400 | 187000 ~ 680000 | 320 ~ 1250 |
| 29.5D | 596 ~ 745 | 3236 ~ 7218 | 348000 ~ 810000 | 800 ~ 1600 |
FAQ
1,Q: What’s the MOQ of your company?
A: The MOQ is 1set.
2,Q: How long is the delivery time?
A : A:5-35 days.
3,Q : What’s your payment terms?
A : T/T, L/C, or Negotiable.
4,Q: What’s your warranty?
A: 1 year.
5,Q: Is your company factory or trade company?
A: We have our own factory, our type is factory +trade.
Application
Centrifugal fan is applied in industrial boiler, (centrifugal fan
can be applied in industrial boiler,) it also can be applied in
industrial kilns, blast furnace, Industrial waste heat recovery
device, Electrolytic aluminium production line air purification
system and other industrial work environment.
