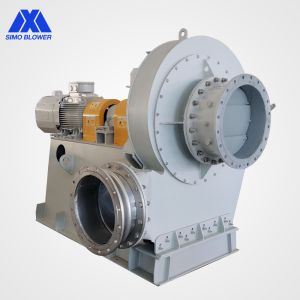

Customized 45kw high efficiency medium pressure centrifugal fan
industrial series
The Customized 45kW High Efficiency Medium Pressure Centrifugal Fan is part of our industrial-grade series, specifically engineered
for large-scale ventilation, exhaust, and process air supply
systems. Designed with a high-efficiency impeller and optimized
airflow channels, this fan integrates advanced CFD simulation and
FEA structural analysis to deliver high airflow and pressure with
minimal energy consumption.
Powered by a robust 45kW motor, it ensures stable and reliable
long-term operation. Widely used in petrochemical, power
generation, metallurgy, cement, and environmental industries.
Custom options available: airflow, pressure, speed, materials,
anti-corrosion, explosion-proof, and noise reduction features can
be tailored to match specific industrial requirements.
Product Features
1.This series of fans is a new type of high efficiency industrial
fan in the field of small flow and medium pressure.
2.The current collector and impeller front plate are processed by
advanced spinning process and ensure precision.
3. V-belt driving and coupling driving type fan are equipped with integral bearing box, which has good lubrication,
stable operation and long bearing life.
4. Equipped with tapered sleeve embedded pulley, easy to assemble and
disassemble.
5. The current collector is equipped with a mounting flange to
facilitate the use of the pipeline by the customer.
Product Parameters
The following datas are only part of performance of our product.If you can't find the datas you need, pls send us your performance
requirementswe will provide you customized design service.
| Customized 45kw high efficiency medium pressure centrifugal fan
industrial series |
| Performance | Pressure range | 3215-27349 | Pa |
| Air flow range | 1049-33030 | m3/h |
| Impeller diameter | 400-3500 | mm |
| Speed | ≤3000 | rpm |
| Material | Blower fan casing | Q235, Q345, stainless steel | Design as special |
| Blower fan shaft | 45# steel, Q304, SS304,SS316L |
| Blower fan impeller | Q304, 12Cr1Mov,15Crmov, 15MnV |
| Medium | 10---120 | Dustiness<80 g/m3 | incombustible |
| Motor | Siemens, ABB, WN, SIMO, LA | IP 54,55,56 | 3 phase |
Optional
components | System base frame, Protective screening,
Silencer, Inlet & Outlet pipeline compensator,
Inlet & Outlet flange, Damper, Electric actuator,
Shock isolator, Diaphragm coupling, Fluid coupling,
Motor rain cover, Temperature sensor, Vibrating sensor,
Soft starter, Inverter, Special Electrical Motor,
System monitoring Instrument,
Lube system, Overhead lube tank. |
