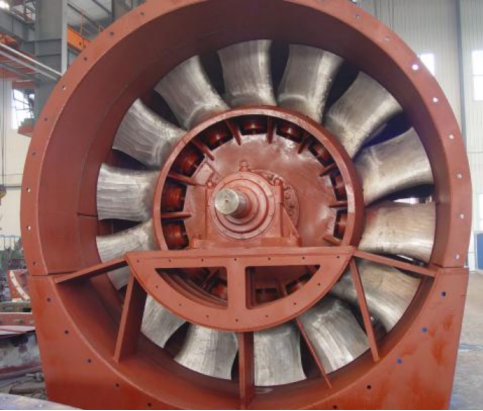

Fan Overview:

Adopts a dual-stage impeller design. Depending on the fan model and speed, it utilizes either cast or forged aluminum alloy blades, ensuring sufficient safety margins.

Fan Features:

1. The fan adopts a dual-stage impeller design.

2. The mid and rear guide vanes of the fan use a plate-type twisted fixed structure, which alters the airflow pre-rotation at the impeller's outlet and inlet flow field while also supporting the rotor.

3. The fan is equipped with a manual brake device.

4. The fan uses rolling bearings with grease lubrication. A platinum resistance primary instrument is installed on the bearing housing, with a temperature inspection instrument provided. Additionally, a vibration monitoring instrument can be optionally configured to ensure the fan's smooth and stable operation.

5. The product can achieve a reverse airflow of more than 40% across the full performance range.

6. The blades are designed with a twisted airfoil shape, and the installation angle is steplessly adjustable between 15° and 45°.

Application scenario:

The K series high-negative-pressure mine axial flow fan is a main fan with high ventilation resistance specially designed for various coal mines and metal mines. It is also suitable for tunnel ventilation and other sectors of the national economy.

Xinxiang SIMO Blower Co., Ltd. was founded in 2008, located in Xinxiang city, Henan province. SIMO is a professional manufacturer engaged in the research, development, production, sale and service of centrifugal fans, axial fans, blower fan parts. As the senior member of China General Machinery Industry Association, SIMO dedicated to strict quality control and thoughtful customer service, our experienced engineers will ensure full customer satisfaction according to your requirements. In recent years, SIMO Blower invited domestic aerodynamic experts to participate in research and development, drawing on advanced technology, constantly designing new products. The specialized pattern of design, manufacturing, testing, inspection and service is realized at the technical level. In addition, we have obtained C E and I S O 9 0 0 1 certificate. Selling well in all cities and provinces around China, our products are also exported to clients in such countries and regions as Russia, Australia, Pakistan, Thailand, Vietnam, Chile and other countries. SIMO Blower’s products are widely used in power plant, metallurgy, chemical industry, cement and glass production, industrial boiler system, dust removal system and other industrial fields. Whether making fan solution or providing on-site technical support and service, you can talk to our customer service center about your sourcing requirements.
